AEconversion AEDL-UH Logger The AEconversion data logger can monitor up to 50 inverters and stores all operational data for up to 2 years. The polling intervals can be adjusted individually in the range from 1 minute to 60 minutes. The collected and stored data are: current performance, current income, status. The display is on a 2x16-character LC-display with back light. In addition to the direct reading of the data on the display, the stored data can be copied to a USB memory stick for graphical representation using the monitoring software. Eine Produktübersicht erhalten Sie hier. Schnittstellen: RS485 PLC USB Speicher Eingänge: Nom. AC Spannung: 230 VAC Nom. AC Spannungsbereich: 184 - 264 VAC AC Strom: 25 mA AC Frequenz: 50 / 60 Hz Max. Strom: 16 A Gehäuse: Abmessungen (L / B / H): 100 / 65 / 90 Gewicht: 0,3 kg Schutzklasse: IP 20

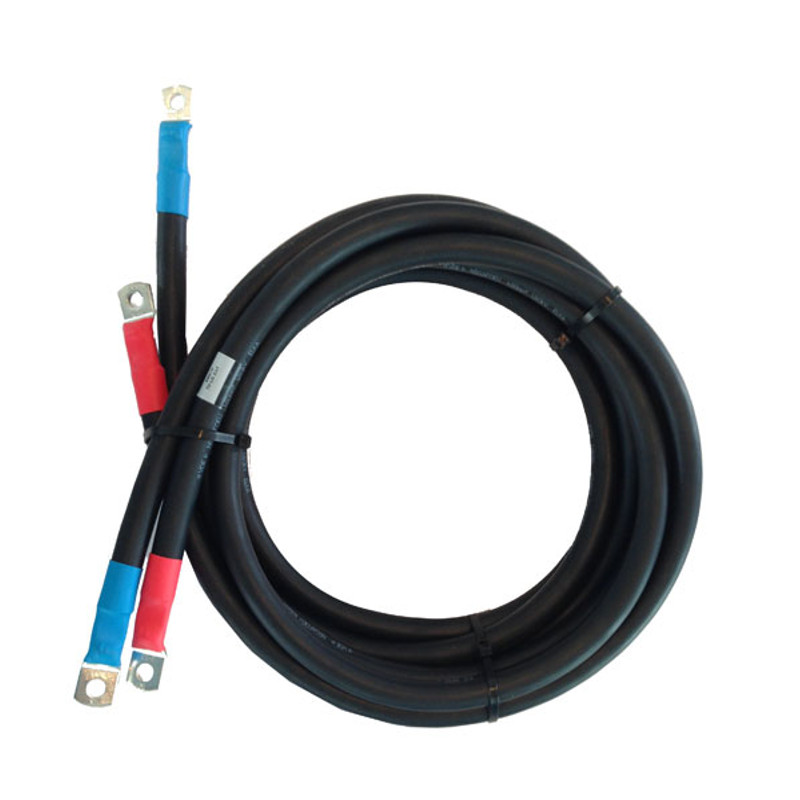

HIS Batteriekabel 50mm², 2,50 m Batterie Anschluss-Set für Wechselrichter und Speicher. Z. B. SMA und LG Lieferumfang: 2 Kabel NSGAFÖU 1.8/3kV 1x50,0 mm² schwarz á 2.500mm Länge A-Seite Rohrkabelschuh mit schmalem Flansch für M8 - 50 mm², B-Seite Rohrkabelschuh mit schmalem Flansch für M8 - 50 mm² 1. Kabel beidseitig mit rotem Schrumpfschlauch, 2. Kabel beidseitig mit blauem Schrumpfschlauch Etikett: Batterie-Anschluss-Set 2 x 2,5m 50mm²

Huawei Backup Box-B0 Die Huawei Backup Box-B1 sorgt dafür, dass auch bei Stromausfall Ihre Verbraucher versorgt werden. In Kombination mit der M1 Wechselrichterserie ist ein Notstrombetrieb bei Netzausfall durch die Backup Box möglich. Das Gerät unterstützt die Kommunikation zum Wechselrichter ganz einfach mittels digitalem Eingang. Gegen Witterungs- und Umwelteinflüsse vor Ort ist das Gerät nach IP65 geschützt. Es kann in einem Bereich von -20°C bis +45°C betrieben werden.

Huawei Backup Box-B1 Die Huawei Backup Box-B1 sorgt dafür, dass auch bei Stromausfall Ihre Verbraucher versorgt werden. In Kombination mit der M1 Wechselrichterserie ist ein Notstrombetrieb bei Netzausfall durch die Backup Box möglich. Das Gerät unterstützt die Kommunikation zum Wechselrichter ganz einfach mittels digitalem Eingang. Gegen Witterungs- und Umwelteinflüsse vor Ort ist das Gerät nach IP65 geschützt. Es kann in einem Bereich von -20°C bis +45°C betrieben werden.

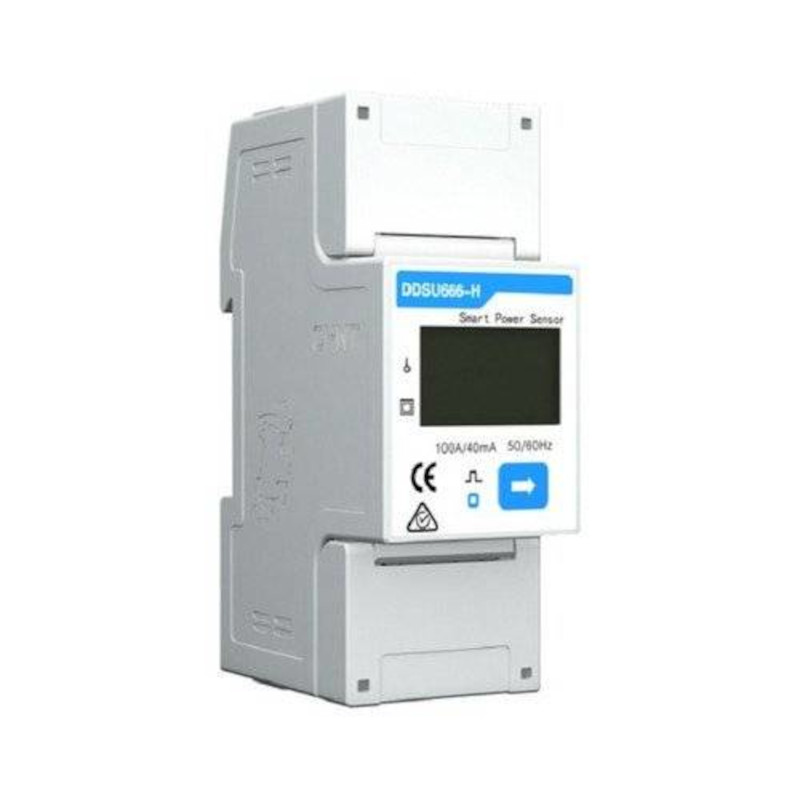

Huawei Stromsensor DDSU666-H 1-Phasig Smart Power Sensor (eine Phase) Messgenauigkeit ＞ Klasse 1 innerhalb des gesamten Temperaturbereichs Begrenzungskontrolle für Stromexport LCD-Display, praktisch für Benutzer zur Einrichtung und Überprüfung Stromverbrauch gesamt ≤ 1 W  Lieferung erfolgt inkl. Stromwandler

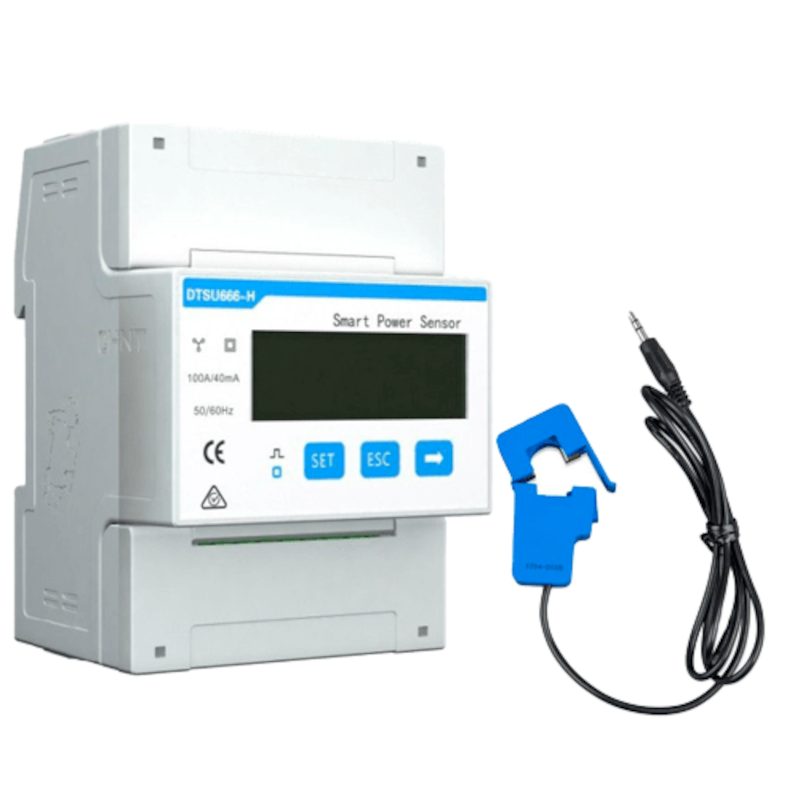

Huawei Smart Power Sensor (Stromsensor) DTSU666-H 250A/50mA Smart Power Sensor (drei Phasen) Messgenauigkeit ＞ Klasse 1 innerhalb des gesamten Temperaturbereichs Begrenzungskontrolle für Stromexport LCD-Display, praktisch für Benutzer zur Einrichtung und Überprüfung Stromverbrauch gesamt ≤ 1 W  Lieferung erfolgt inkl. Stromwandler

Solarkabel KBE Berlin DB PV1-F 4mm² KBE Solarcables provide for fast and cost-saving power transmission in PV-systems. KBE Solarcables are certified in accordance with TÜV 2 PFG 1169/08.2007. Due to specially cross-linked insulations our solarcables exceed technical requirements in terms of product life and product reliability. KBE Solarcables are available in various outer diameters and therefore are compatible with all standard plugs / plug connectors and connection boxes. Our short delivery periods are outstanding. Divers package sizes meet customer specific requests. KBE Solarcables are manufactured within an optimised production process using modern manufacturing technologies. Due to our long experience in copper business we are able to offer cost-efficient solutions.

Solarkabel KBE Berlin DB PV1-F 6mm² KBE Solarcables provide for fast and cost-saving power transmission in PV-systems. KBE Solarcables are certified in accordance with TÜV 2 PFG 1169/08.2007. Due to specially cross-linked insulations our solarcables exceed technical requirements in terms of product life and product reliability. KBE Solarcables are available in various outer diameters and therefore are compatible with all standard plugs / plug connectors and connection boxes. Our short delivery periods are outstanding. Divers package sizes meet customer specific requests. KBE Solarcables are manufactured within an optimised production process using modern manufacturing technologies. Due to our long experience in copper business we are able to offer cost-efficient solutions.

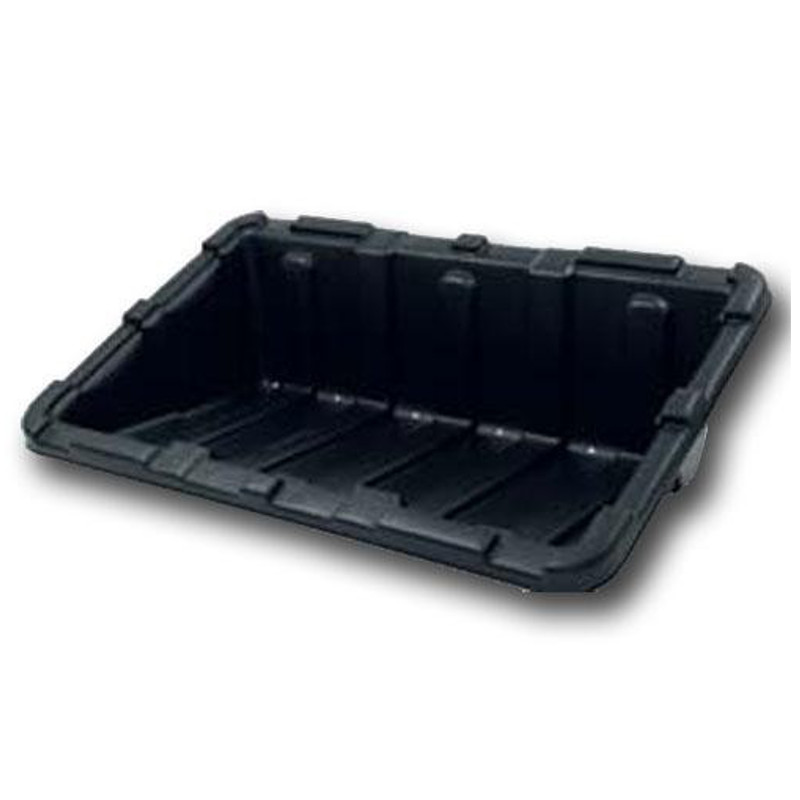

Renusol Console+ Fast, simple, cost-effectiveFor mounting of photovoltaics on flat roofs and ground areas. If your are looking for the optimal solution for medium to large sized PV systems on flat surfaces, this system will convince you. The unique mark of the ConSole+ is the use of ballasting through the weight of gravel, quarry tiles or similar material, so that the roofing or the underground remain intact. This results in very easy planning, extremely short mounting times, and secure support. ConSole+ is made of 100% chlorine-free polyethylene, which gives the robust system longevity. At the same time, the slight weight and the stackable shape offer great advantages for logistics and warehousing and during installation. ConSole+ is stable and durable and stands out through especially easy handling. Flat-roof mounting, without anchoring, without damaging the roofing Also suitable for ground mounted installations Especially for landfills, rocky undergrounds and conversion sites Available for most sizes of solar modules Aerodynamic version support angle at 15° with wind deflector Free positioning of the modules Optimal load distribution without concentrated loads Complies with fire prevention measures according to DIN EN 13501-1:2010-01 class E Low product weight, depending on type between 7.9 and 9.9 kg

SMA Energy Meter Universal recording of measured values for intelligent energy Management The powerful measurement solution for intelligent energy management within the SMA Smart Home: The SMA Energy Meter takes phase-exact and balanced electrical measured values as a grid feed-in and purchased electricity meter and communicates these values via Speedwire. Thanks to its ability to quickly acquire measured values, the SMA Energy Meter is the ideal supplier of data for intelligent energy management within the SMA Smart Home. All PV generation data, purchased electricity and grid feed-in can be transmitted via standard Ethernet cable to the Sunny Home Manager, for example, or to the Sunny Boy Smart Energy. This, in turn, facilitates optimal energy monitoring, effective load and battery management and reliable active power limitation at the grid feed-in point while taking self-consumption into account. Easy-to-Use     Quick plug and play installation     Graphic visualization of current measured values in Sunny Portal Flexible     Space-saving top-hat rail mounting in household distribution thanks to compact enclosure     Use of standard Ethernet cables for Speedwire communication     Universal deployment options regardless of existing energy meter     Easily and flexibly combined with SMA Smart Home components High Performance     Fast three-phase reading of measured values for effective energy management    Fast Speedwire communication

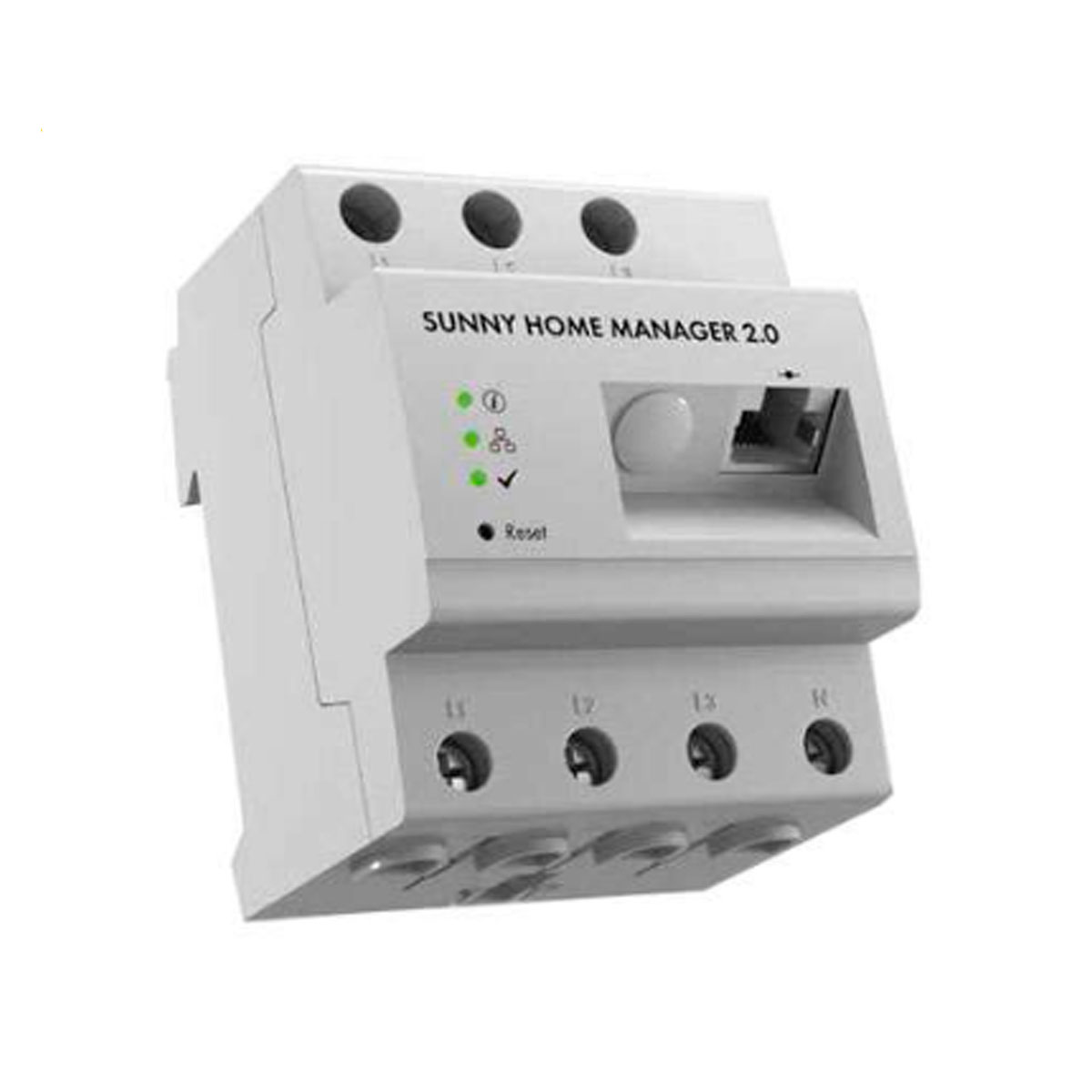

SMA Home Manager 2.0 The control center for smart energy management Everything’s in position for efficiently using solar energy. The Sunny Home Manager 2.0 offers all functions for seamless PV system monitoring, smart energy management and an integrated energy management solution, the SMA Smart Home. As a result, PV system operators have an overview of all relevant energy flows in the home. Using the individualized recommended actions, they can make decisions about when to use their solar power best. In particular, the Sunny Home Manager 2.0 is key to automated integration of controllable loads and also serves as energy manager in storage systems with the Sunny Boy Smart Energy or Sunny Island. System monitoring with the Sunny Home Manager 2.0 Every residential PV system can be conveniently and seamlessly monitored with the Sunny Home Manager 2.0. After a simple commissioning procedure using the installation wizard, all basic functions are available via Sunny Portal. The PV system operator can use the live display to quickly get updated on energy home management. The data is updated every ten seconds, thereby playing a key role in helping to secure yield from the PV plant. In this process, the energy values for PV generation, purchased electricity and grid feed-in are registered from the connected power meters via various interfaces.     Transparency for all household energy flows     Free of cost PV system monitoring secures ideal yield from the PV plant     Easy commissioning thanks to installation wizard     Immediate e-mail notification in the event of a failure     Power and energy values instantly visible with live display     Display of battery charging and discharging Energy management with the Sunny Home Manager 2.0 Energy management in the SMA Smart Home is not a static and pre-defined process, instead the Sunny Home Manager 2.0 looks around and thinks for itself. For example, it uses the local weather forecast to calculate how much solar power is expected to be available over the course of the day. Even more, the Sunny Home Manager 2.0 learns the typical time at which household appliances are operated (load profile) and takes this into account in its calculation for energy management. The result: Thanks to the recommended actions provided, system operators receive guidance when and for how long they can use the solar power — optimally. For example, to start the washing machine. Thanks to this unique service, PV plants with Sunny Home Manager 2.0 reach a higher level of self-consumption, which is specifically important in Germany. Furthermore, time-of-use electricity tariffs are considered, the system is well prepared for future changes of the electricity supply conditions.     Individualized recommended actions result in optimized use of solar power     Support in reducing energy costs by precisely understanding household energy flows     Higher yields and a quicker return on investment through increase of self-consumption rate     Up to ten percent lower power consumption while optimizing your self-consumption rate     Storage system battery is charged at the ideal time Load control with SMA Smart Home The Sunny Home Manager 2.0 integrates controllable loads fully in accordance with the PV system operator’s individual requirements. Specifically, this means that common household appliances, such as washing machines or dishwashers, can be switched on or off remotely. This takes places either via the SMA radio-controlled socket for usual appliances or via data connection (Ethernet) for Smart appliances, i.e. for heat pumps from Stiebel Eltron, Tecalor or other white ware from Miele.This not only further increases self-consumption, but also helps users to record the specific load profiles of individual appliances, thereby helping them to identify electricity guzzlers.     Increase of self-consumption rate through automated load management     High convenience: Controllable loads are automatically turned on at just the right moment     Transparency: Electricity guzzlers can be identified through suitable visualisation of power measurement data     Detailed display of the energy mix comprising solar energy, battery power and purchased electricity

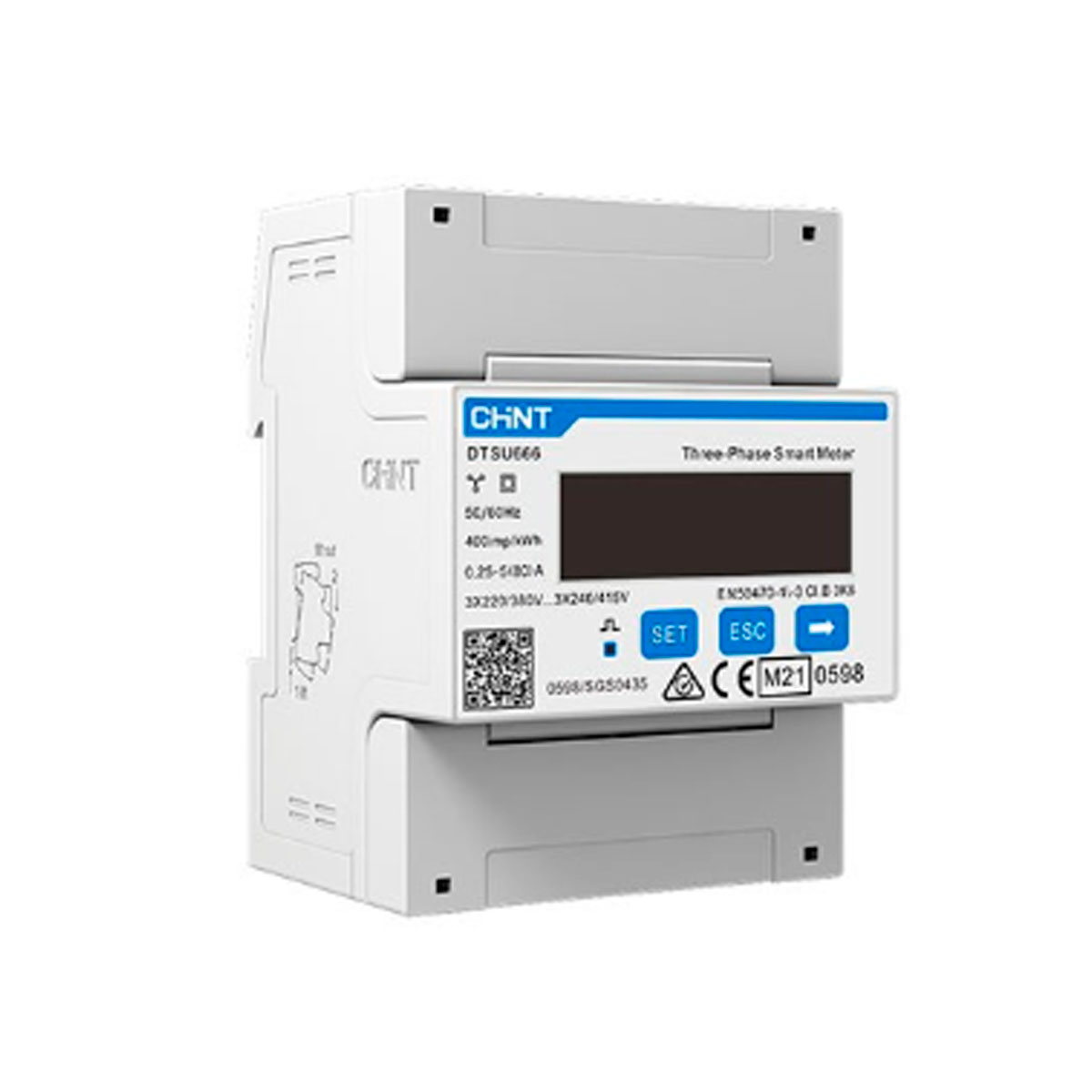

Solax 3 Phasen Stromsensor DTSU666 (Chint) Multifunktionaler Energiezähler für 3 Phasen Wechselstrom Der multifunktionale Energiezähler DTSU666 ist ein intelligenter Zähler mit einer Vielzahl von Mess- und Anzeigeoptionen für 3-Phasen-Wechselstromnetze. Damit der Wechselrichter immer perfekt über die Stromverteilung in Ihrem Gebäude informiert ist. Informationen zum Produkt: LCD-Ziffer und Zeichenanzeige mit weiß-bläulicher Hintergrundbeleuchtung kWh Tageszählwerk (zweites, parallellaufendes Zählwerk frei rückstellbar) direkte Bedienung durch Tasten auf der Frontseite direkt ablesbar sind Zählerstände (kWh) für Import und Export, kVArh, V, A, W, Var, VA, PF, Hz RS485 Modbus RTU Kommunikationsschnittstelle (u.a. zur Steuerung Solax Hybrid WR Gen.3)

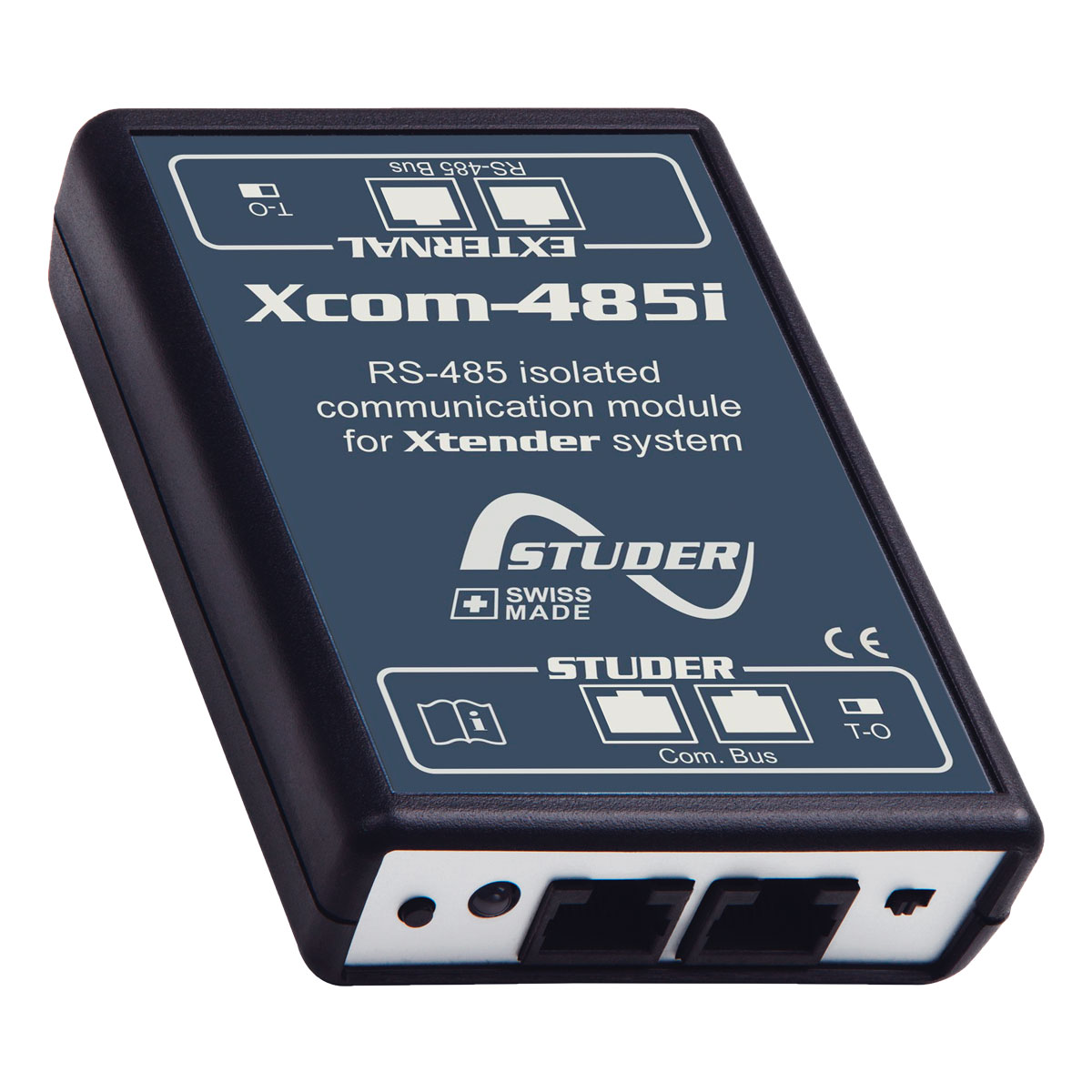

Studer Xcom-RS 485i Durch das Xcom-485i-Modul kann ein Studer Xtender/Vario-System mit einem Fremdgerät (SCADASystem, SPS usw.) über Modbus RTU auf RS-485 interagieren. Die technische Spezifikation dieses Protokolls ist auf der Website von Studer verfügbar. Mit diesem Protokolls kann das Drittgerät Daten lesen und schreiben, Nachrichten empfangen und das Xtender/Vario-System vollständig steuern.
